ORION II 180 V

PLOUGH / SEMI-MOUNTED

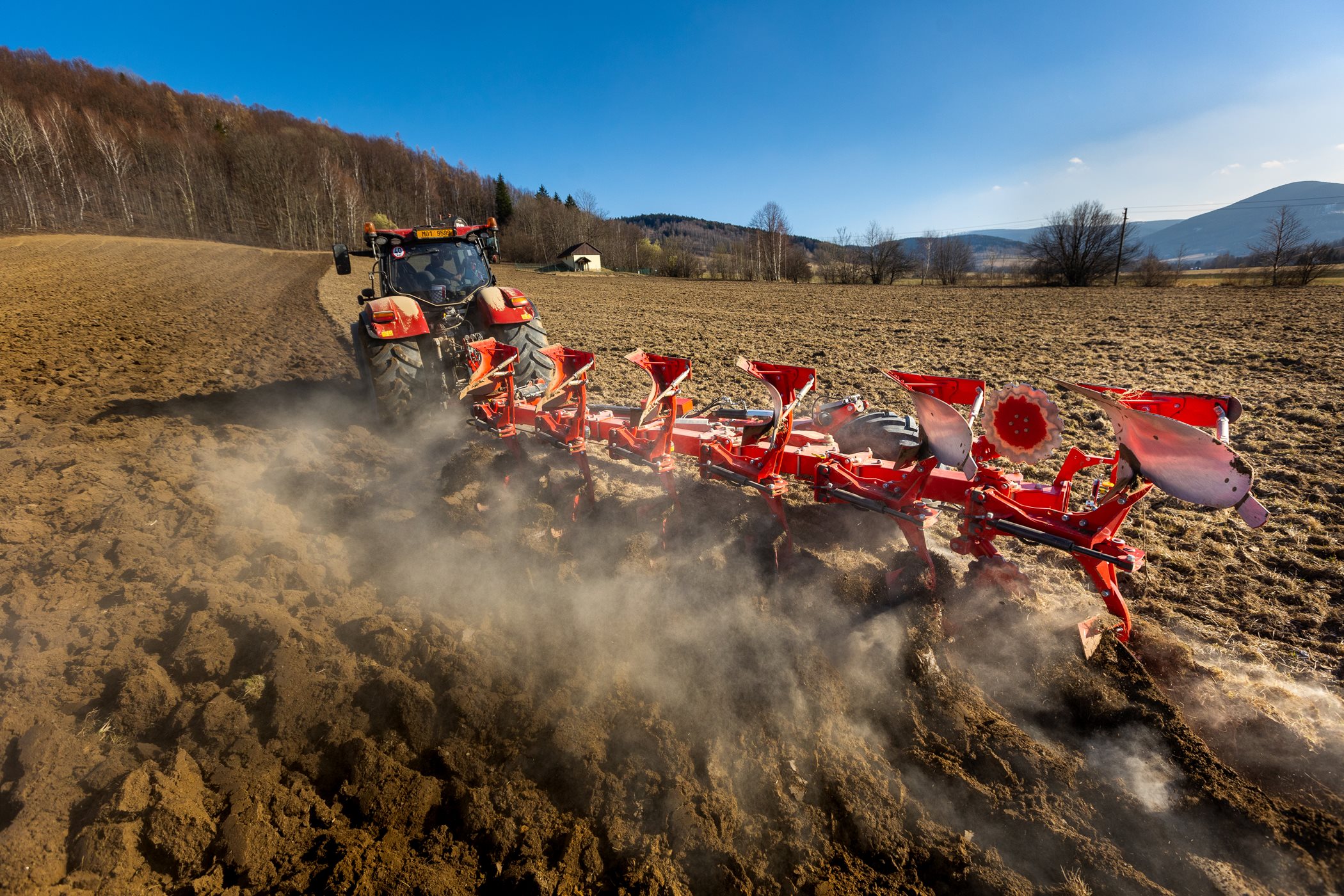

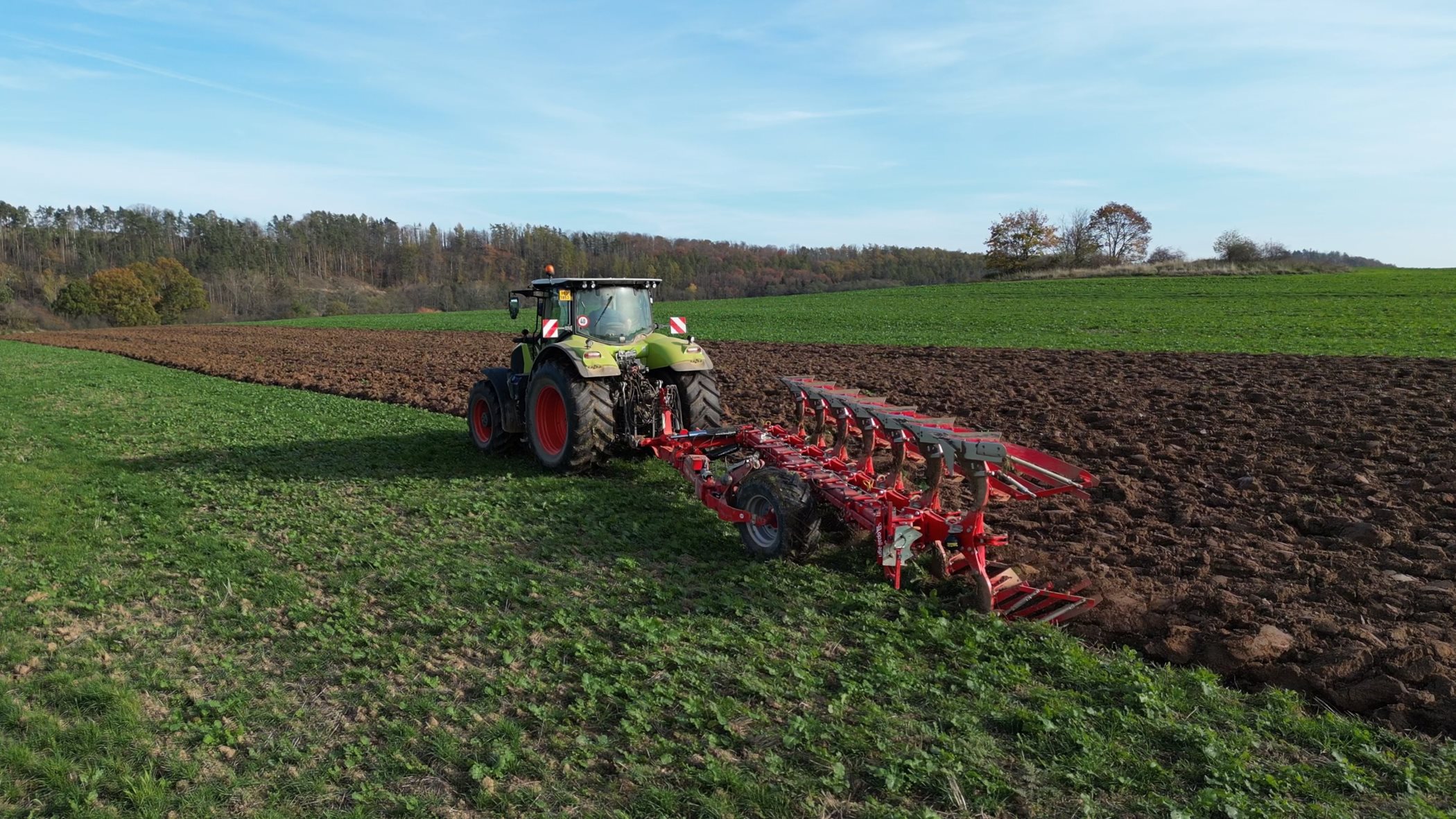

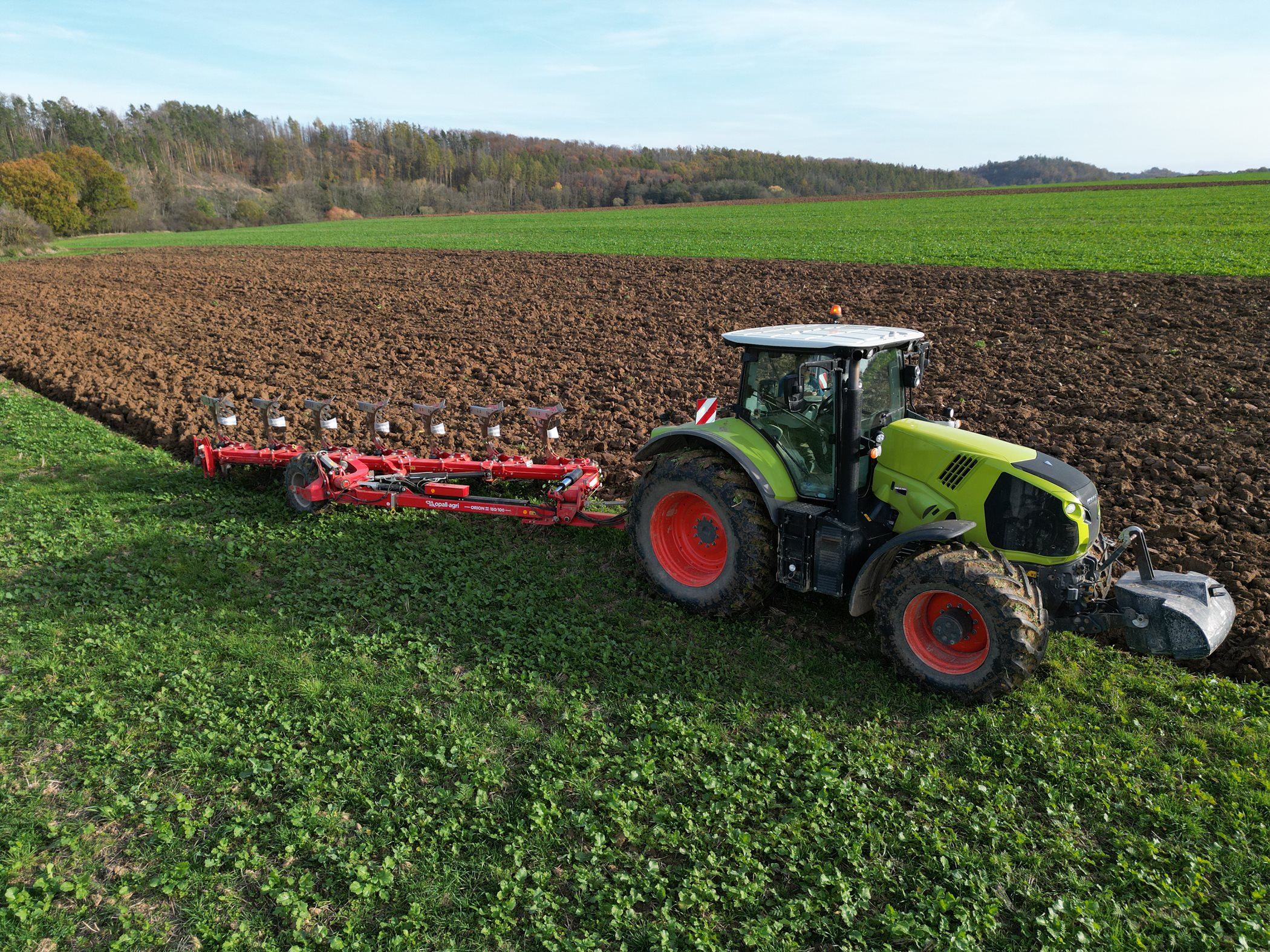

ORION II 180 V are six to nine-rows semi-mounted ploughs designed for tractors from 180 horsepower. The width adjustment is carried out continuously by the hydraulic Vario system.
showroom icon

SHOWROOM OPALL-AGRI PART 7 | Semi-mounted ploughs ORION II

 ORION II 180 are six- to nine-row semi-mounted rotary plows designed for tractors from 180 hp. The plow rotation system consists of piston rods mounted on a rocker mechanism, which rotates the main frame with the plow bodies. During construction, emphasis was placed on quality workmanship in combination with the long service life of all components. The main frame of the plow consists of a high-strength profile of 180 x 180 x 10 mm, which gives the plow rigidity and resistance. We also use the most durable materials for the other parts of the plow, which we refine further in production to achieve a high-quality product with high utility value.

Product description

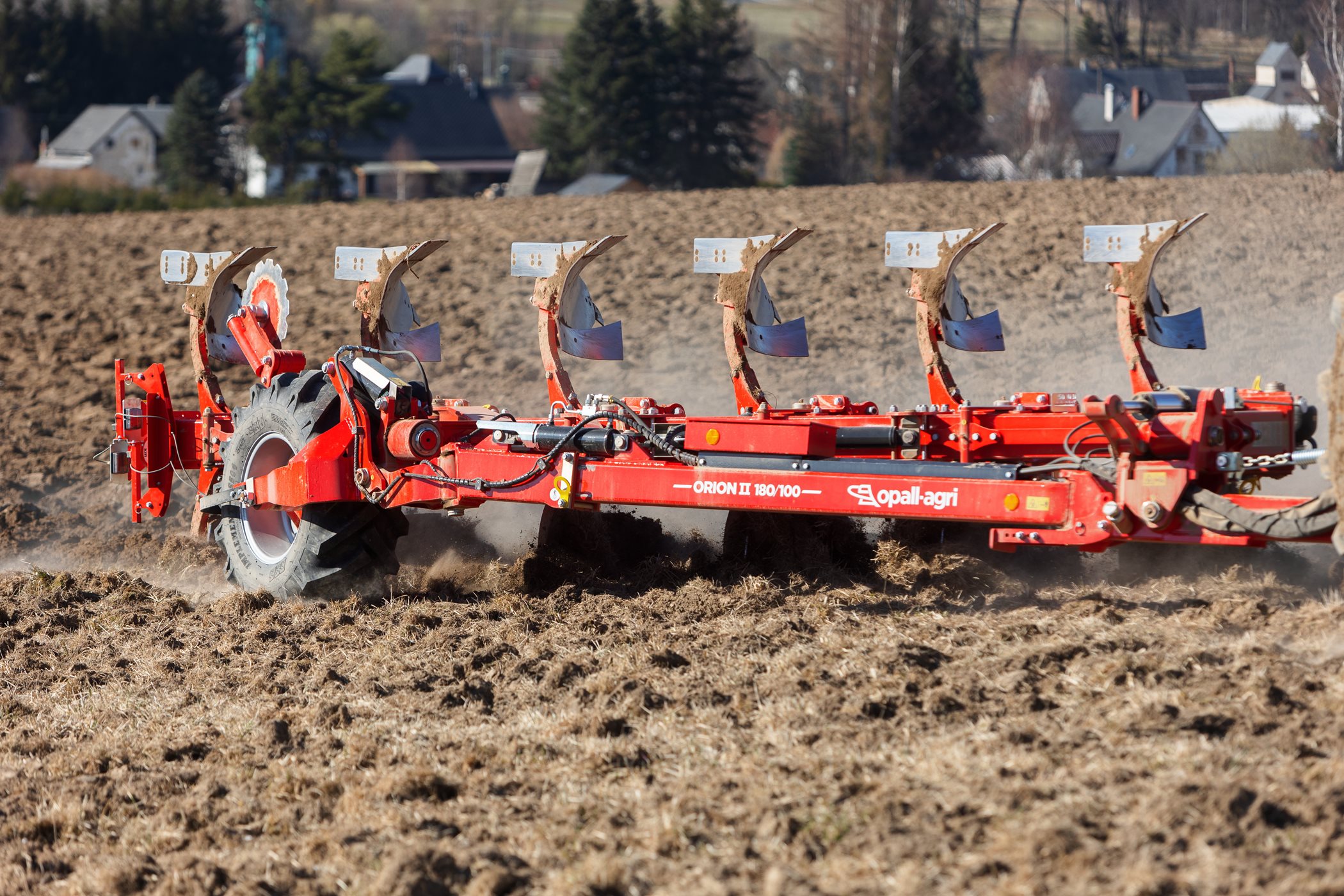

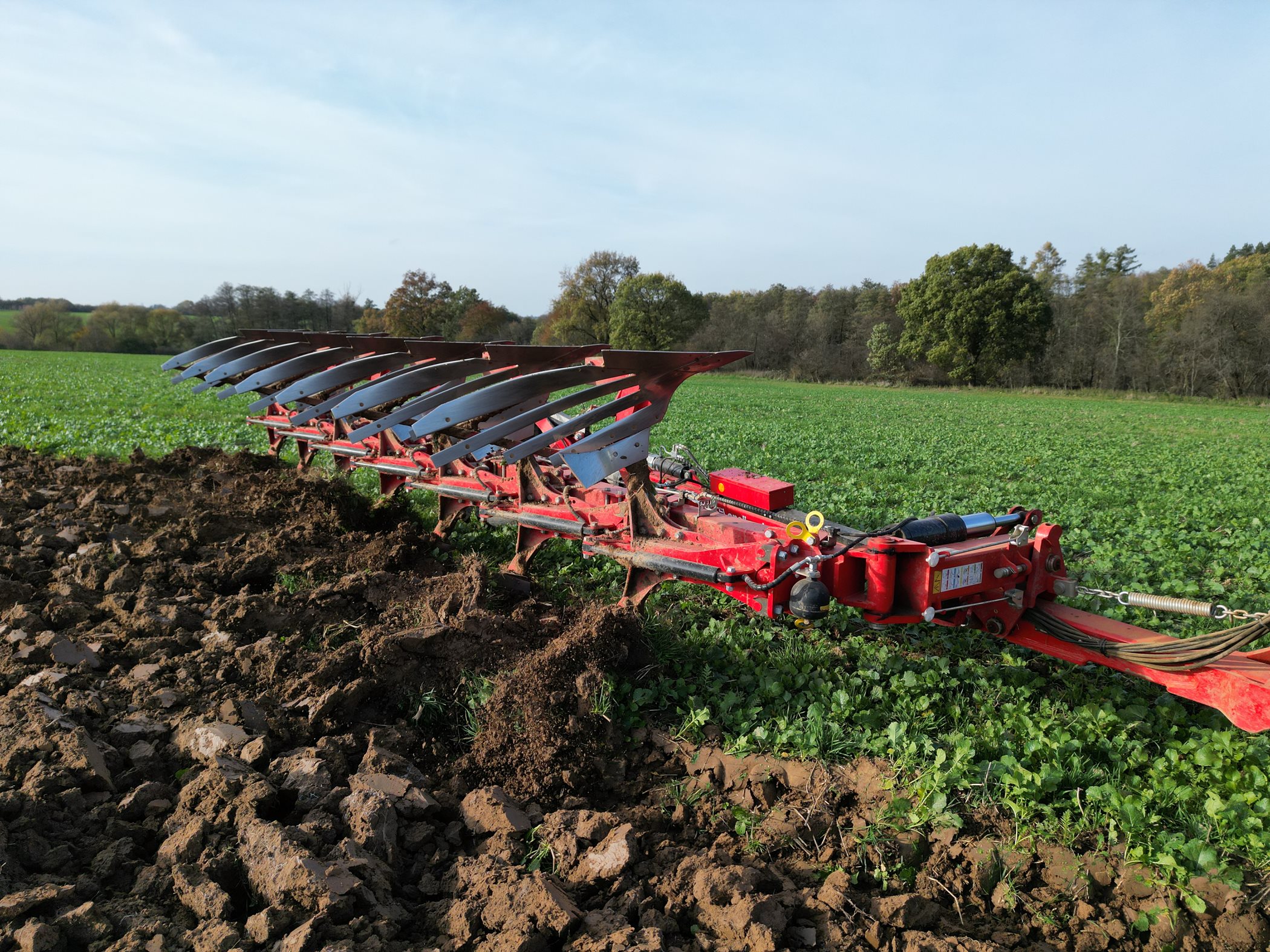

ORION II 180 V are six to nine semi-mounted reversible ploughs designed for tractors with a power of 180 hp and above. During the design, emphasis was placed on quality workmanship combined with a long service life of all components. The main frame of the plough is made of a high-strength profile 180 x 180 x 10 mm, which gives the plough rigidity and durability. We also use the most durable materials for other parts of the plough, which we further refine in production to achieve a quality product with high utility value.
  1. Turn of plough with telescopic pistons
  2. Adjusting the engagement of the 1st blade
  3. Hydropneumatically sprung transport wheel
  4. Hdraulical Vario system
  5. Cat. 3/4 hitch
ORION II 180 V
ORION II 180 V

Main advantage of the machine

The basic frame of the machine is made up of a 6+1 modular system; 7+1 and 8+1. The system thus allows you to assemble the machine according to your current needs. The plow can therefore be extended as well as shortened at any time, which is an advantage, for example, when exchanging tractors with different outputs. The width adjustment is carried out continuously by the hydraulic Vario system.



Equipment

Basic equipment

  • Modular system 6+1; 7+1; 8+1;
  • Continuously hydraulically adjustable width
  • Hydraulically adjustable width of the 1st plough body
  • Mechanically adjustable width of plough bodies in the range of 33/38/44/50 cm
  • Shear bolt, spring mechanism or hydropneuatic protection

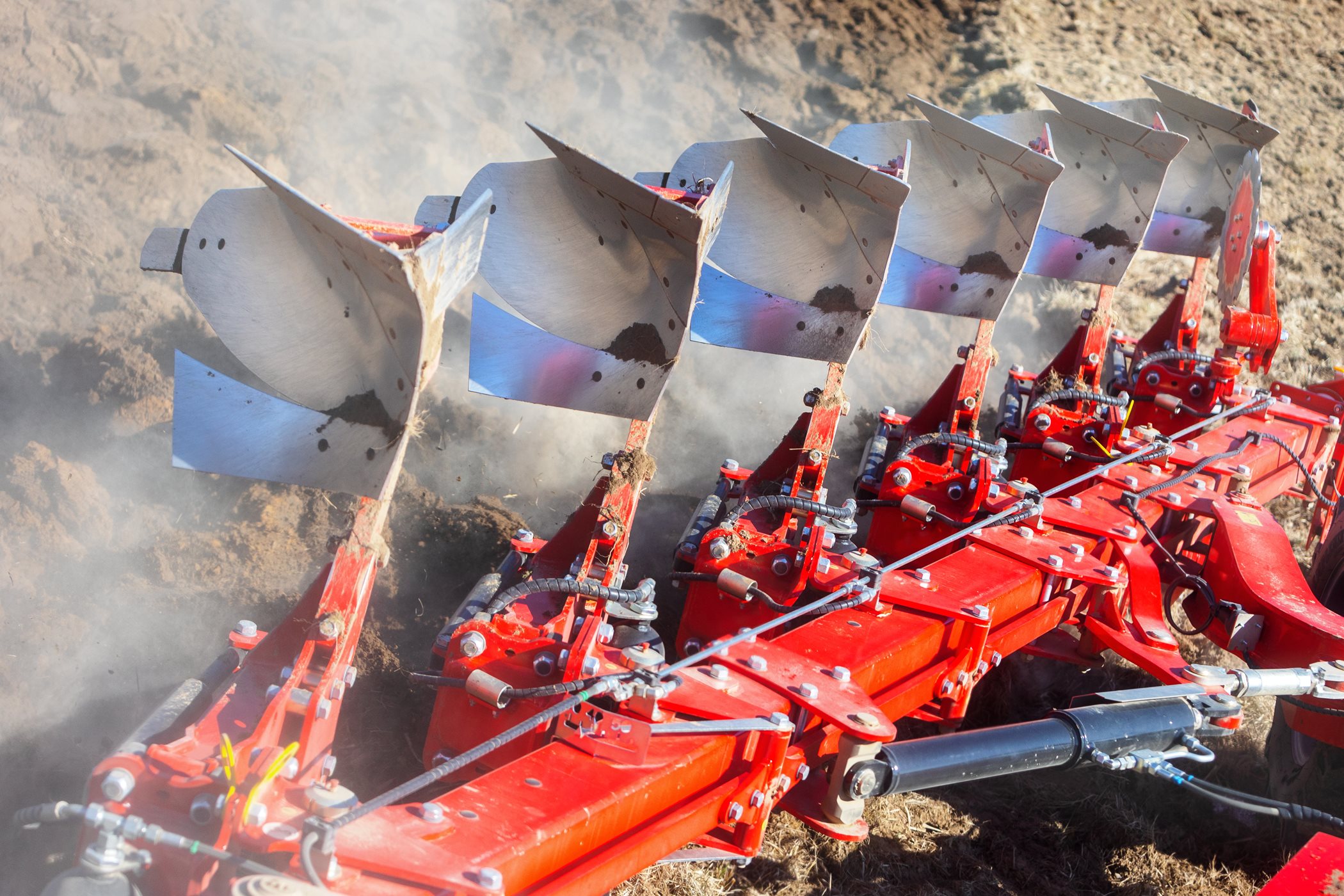

  • Plough bodies with trashboards
  • 82 cm underframe clearance
  • Knife coulters on the last pair of plough bodies
  • Hydraulic chassis suspension for transport
  • Rear reflexive plates
  • Suspension shaft cat. 3
  • Frame profile 180 x 180 x 10 mm

Additional equipment

  • Skimmers
  • Hydraulic circuit divider
Variation – Skimmers
Variation – Hydraulic circuit divider

Technical parameters


Technical specifications   ORION II 180 V
Number of plough shares [pcs] 6 7 / 6+1 8 / 7+1 9 / 8+1
Working width of one ploughshare [cm] 33 - 50 33 - 50 33 - 50 33 - 50
Total working width of the ploughu [cm] 180 - 330 210 - 385 240 - 440 270 - 495
Clearance under the frame [cm] 82 82 82 82
Spacing between the plough units [cm] 100 100 100 100
Recommended operating speed [km/h] 7 7 7 7
Plough weight **
- shear [kg] 3410 3720 4070 4430
- spring [kg] 3830 4210 4670 5160
Tractor output [hp] 180 - 270 210 - 315 240 - 380 270 - 430

** The weight is only indicative and may vary according to the selected machine
