APOLLO I 140 V

PLOUGH / MOUNTED

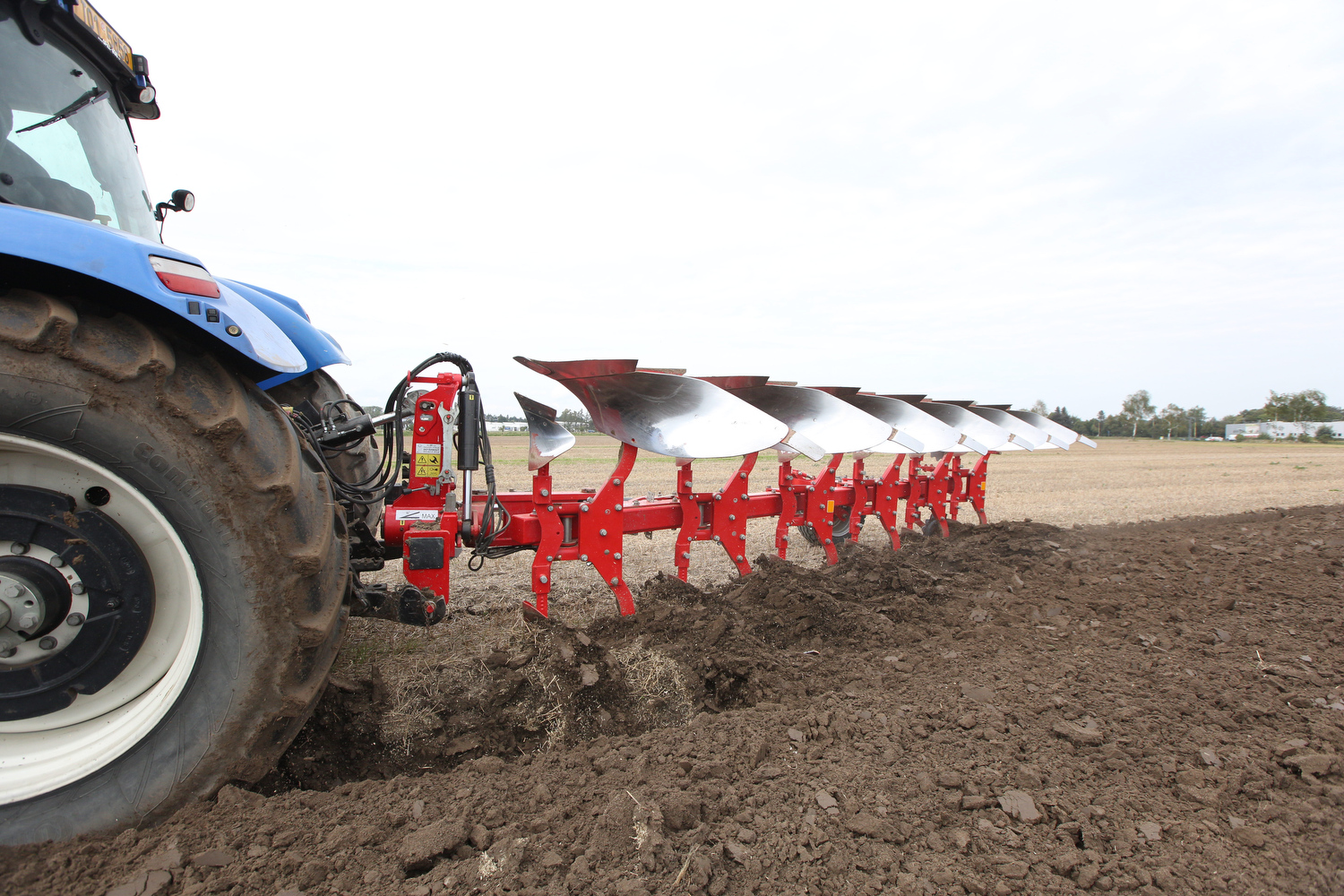

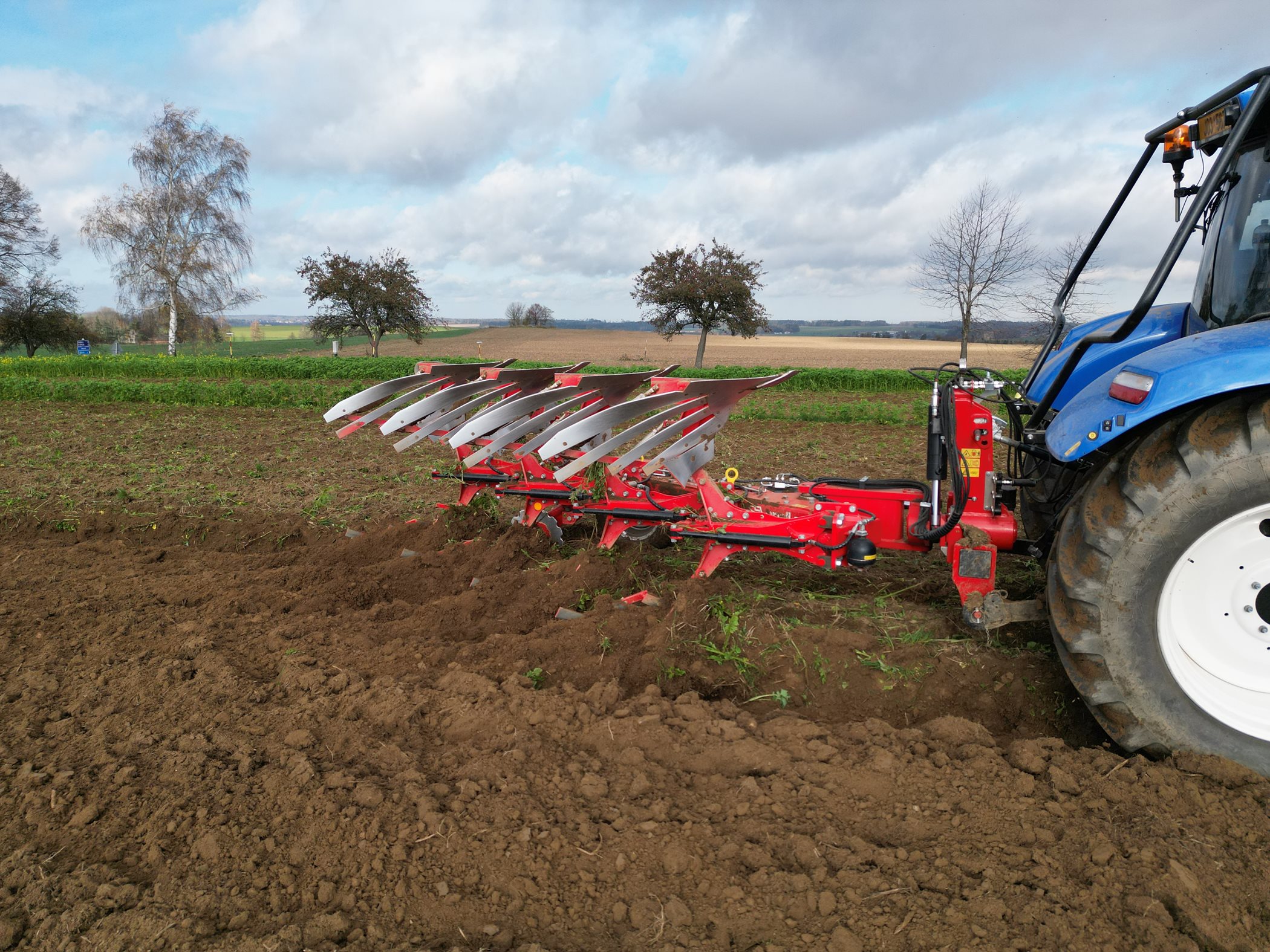

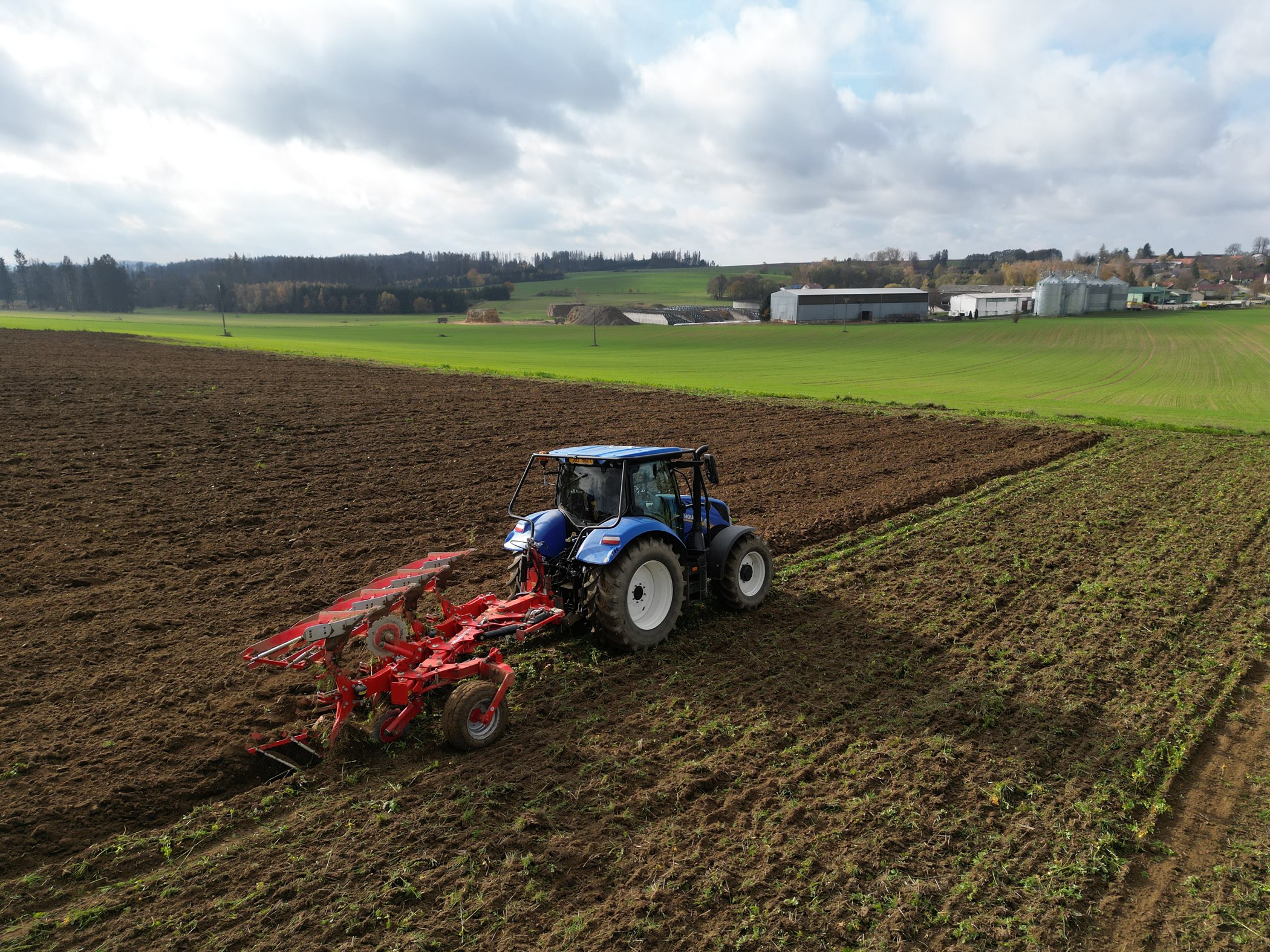

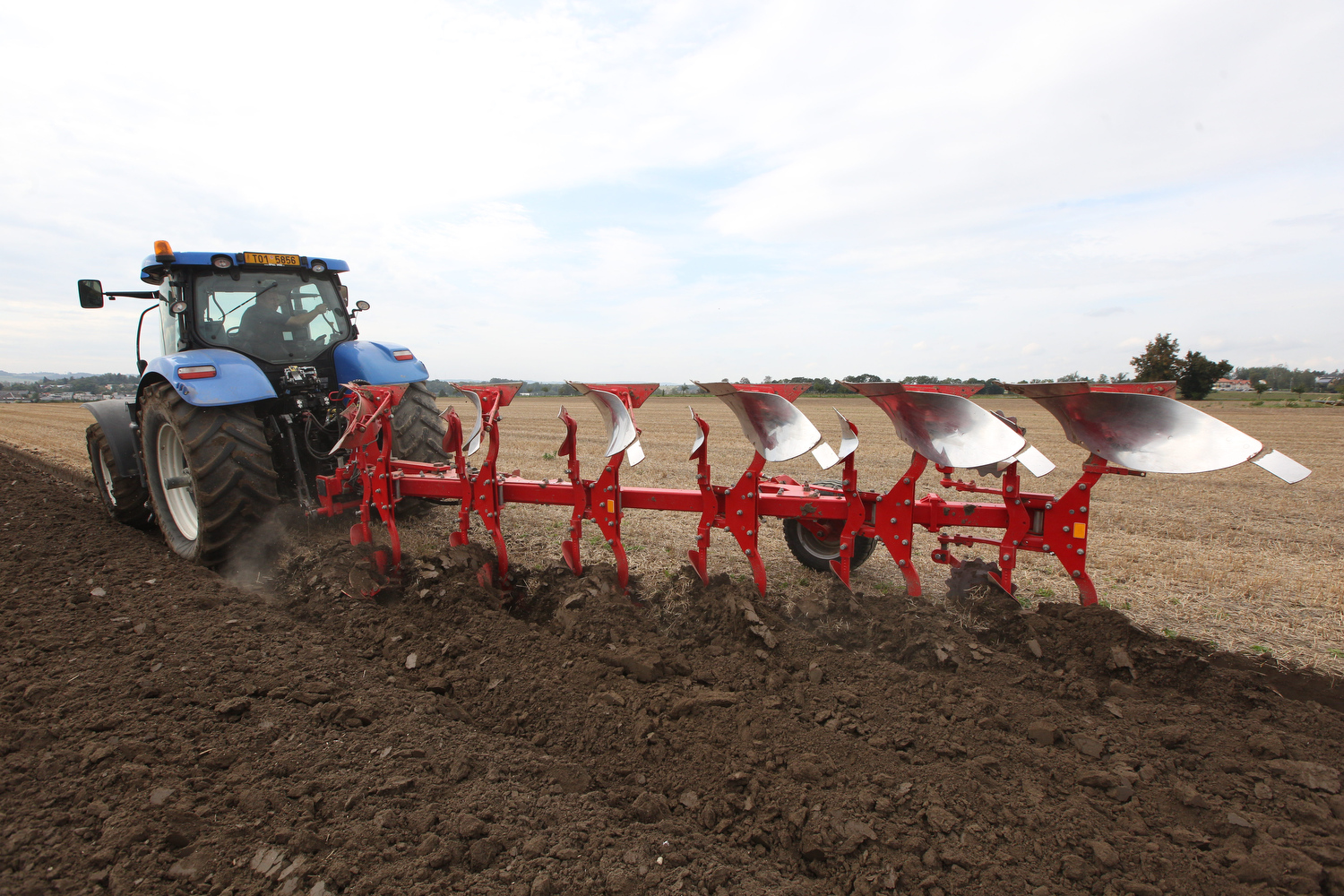

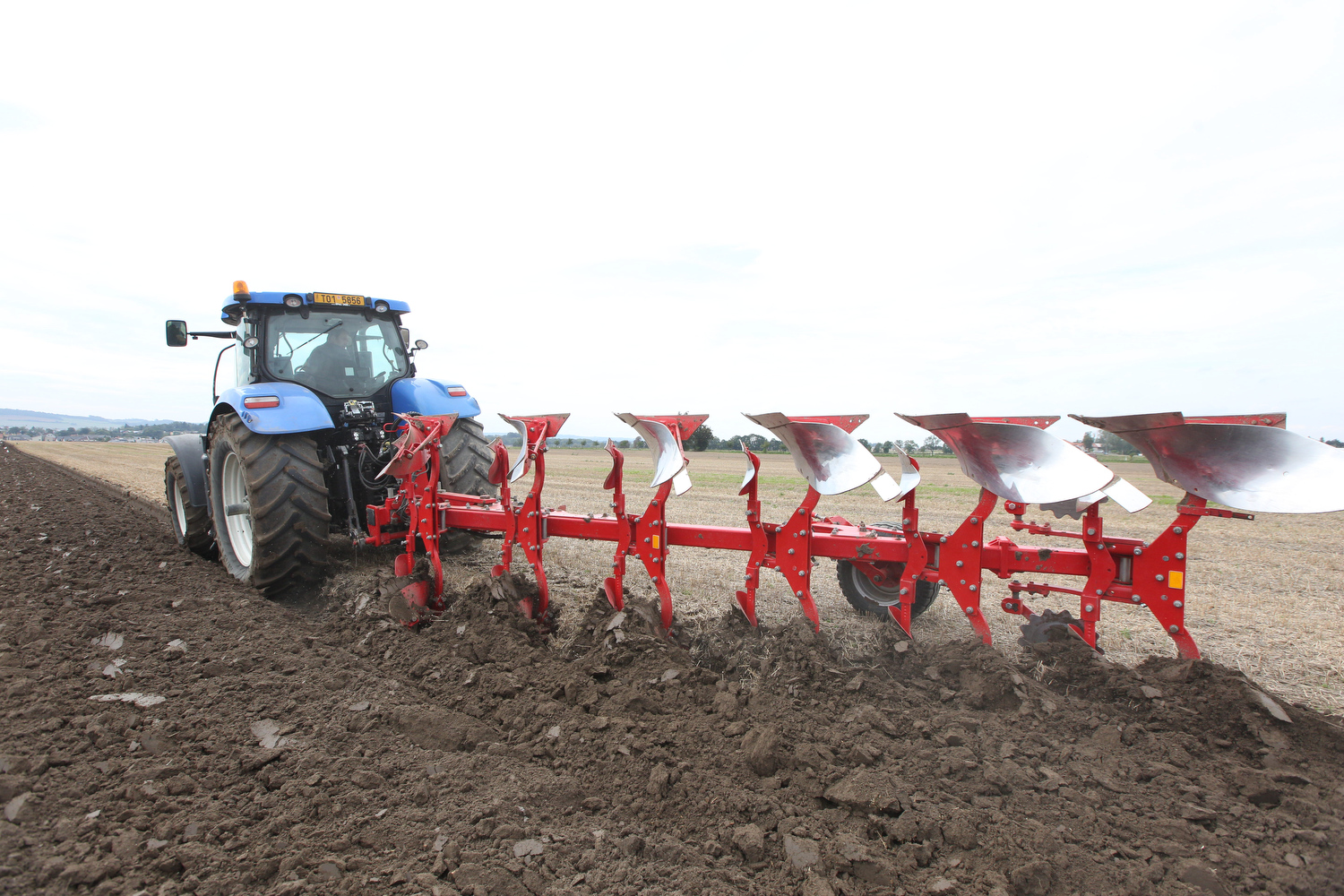

APOLLO I 140 V models are four- to six-plough bodied mounted reversible ploughs designed for tractors from 120 horsepower. Adjustment of plough bodies width is performed continuously by the Vario hydraulic system.

Product description

APOLLO I 140 V models are four- to six-plough bodied mounted reversible ploughs designed for tractors from 120 horsepower. Adjustment of plough bodies width is performed continuously by the Vario hydraulic system.This plough is produced with maximum emphasis on strength and long service life which is incorporated into the structure of all its parts. The plough frame is constructed from a high-strength 140 x 140 x 10 mm square steel tube giving the plough sti‹ness and durability. APOLLO I 140 V ploughs are produced in two versions according to the spacing between the plough bodies, namely the APOLLO I V 140/90 and 140/100.

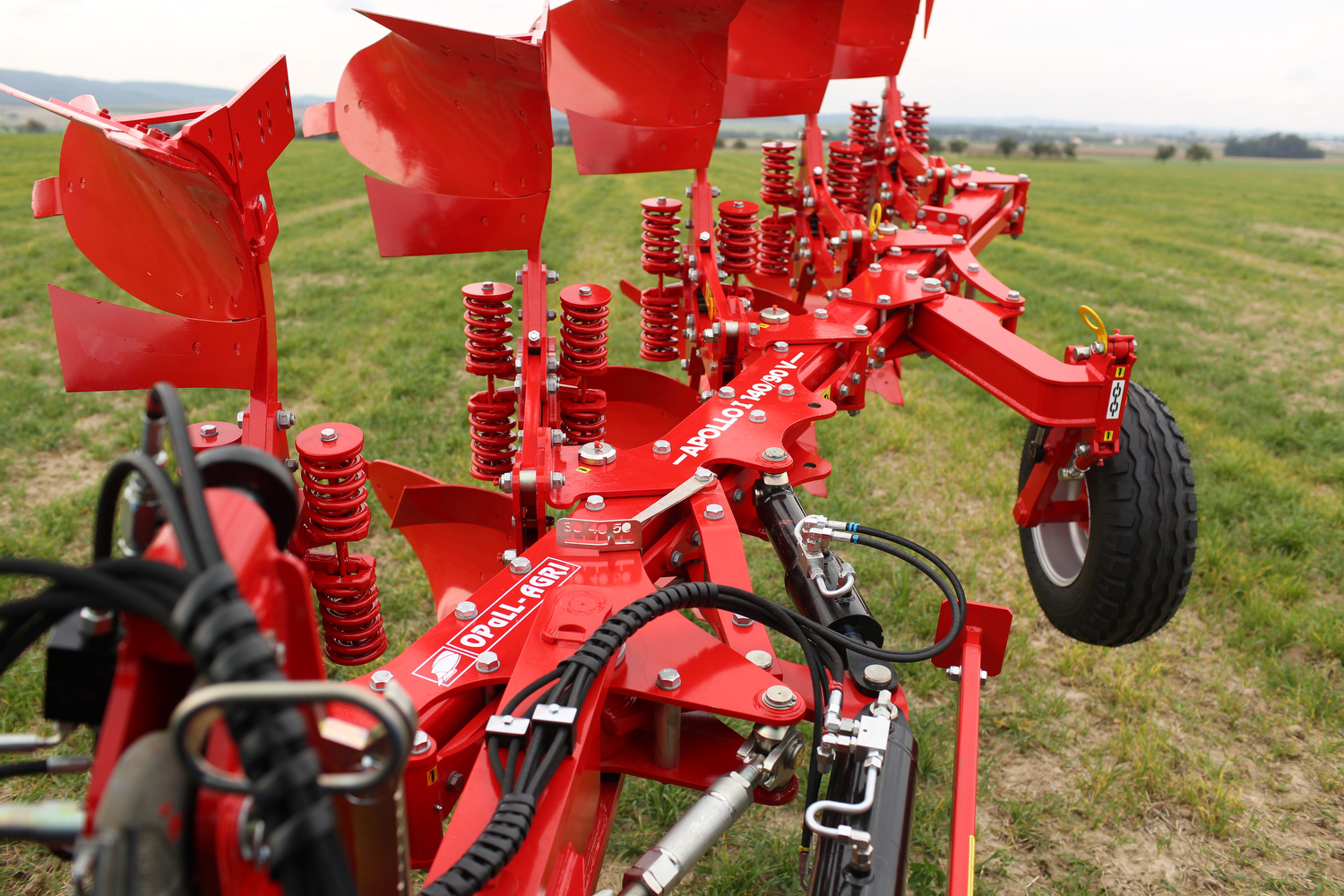

  1. Rotary head
  2. Spring / spear protection

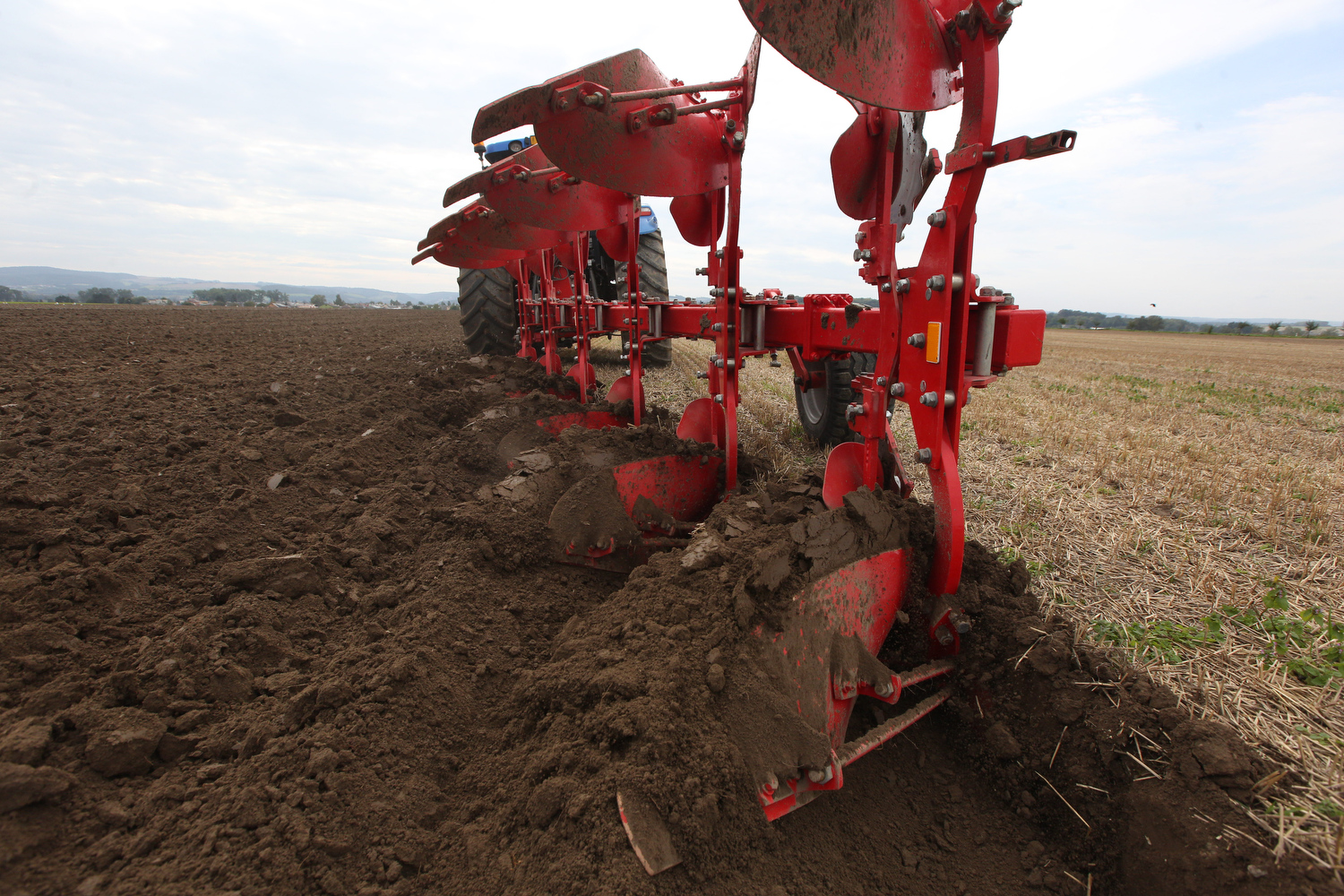

  3. Plough body
  4. Skimmers
  5. Hydraulically operated adjustment mechanism
  6. Support wheel
  7. Disc coulters
APOLLO I 140 V
APOLLO I 140 V

main advantage of the machine

The Vario system of the APOLLO I 140 V, enables smooth hydraulic adjustment of the plough engagement. The system provides an optimal combination of tractor and plough power in the given conditions. With the Vario plough, you can do ploughing for a larger shot, faster and better.

Why OPaLL-AGRI APOLLO I V?

1

Tradition of plough production since 1995

The plough combine years of experience with use of modern production technologies
2

Precise processing to the smallest detail

High-quality processing ensures your long-term satisfaction and precision work
3

We have our own production of wear parts

Wear parts made of special abrasion-resistant steel have a long service life
4

Spacing of plough bodies 90 and 100 cm

It allows you to adjust the overall length of the plough and thus reduces the weight and load requirements of the tractor
5

Clearance under the frame 82 cm

Ensures trouble-free passage of post-harvest residues under the frame, thus preventing clogging
6

Modular frame system 4+1, 5+1

Allows shortening or extending the plough by 1 ploughshare at any time
7

Selection of 5 types of plough bodies

The well-chosen type of the plough body ensures high-quality work even in the specific conditions of your farm
8

Two types of plough body protection

The plough can be fitted with: shear bolt protection – for stone-free soils spring mechanism protection – for stony soils
9

Mechanical adjustment of the width of plough bodies

By mechanical re-adjustment, it is possible to change the width of plough bodies in the range of: APOLLO I 140/90 V - 30-53 cm, APOLLO I 140/100 V - 30-55 cm

Equipment

Basic equipment

  • Modular system 4+1, 5+1
  • Hydraulically adjustable width of plough bodies with a memory cylinder
  • 80 cm underframe clearance
  • Plough bodies including trashboards
  • Knife coulters on the last pair of plough bodies
  • Protection by shear bolt / spring mechanism / hydropneumatic system
  • Rear reflective plates
  • Suspension shaft cat. 3
  • Frame profile 140 x 140 x 10 mm

Additional equipment

  • Disc coulters
  • Skimmers
  • Combined wheel APOLLO I
  • Floation tyre 13.0/55-16
Variation – Disc coulters
Variation – Skimmers
Variation – Combined wheel APOLLO I
Variation – Floation tyre 13.0/55-16

Technical parameters

Technical specifications APOLLO I 140/90 V   APOLLO I 140/100 V
Number of plough bodies [pcs] 4 5 6 4 5 6
Working width of one plough body [cm] 30 - 53 30 - 53 30 - 53 30 - 55 30 - 55 30 - 55
Total working width of the plough [cm] 120 - 212 150 - 265 180 - 318 120 - 220  150 - 275 180 - 330
Clearance under the frame [cm] 82 82 82 82 82 82
Spacing between the plough bodies [cm] 90 90 90 100 100 100
Recommended working speed [km/h] 7 7 7 7 7 7
Plough weight *
- shear bolt protection [kg] 1690 1890 2120 1710 1920 2150
- spring mechanism protection [kg] 1950 2240 2510 1980 2270 2540
Tractor output [hp] 120 - 210 150 - 260 180 - 310 120 - 220 150 - 275 180 - 330

   *The weight is only indicative and may vary according to the selected machine.
