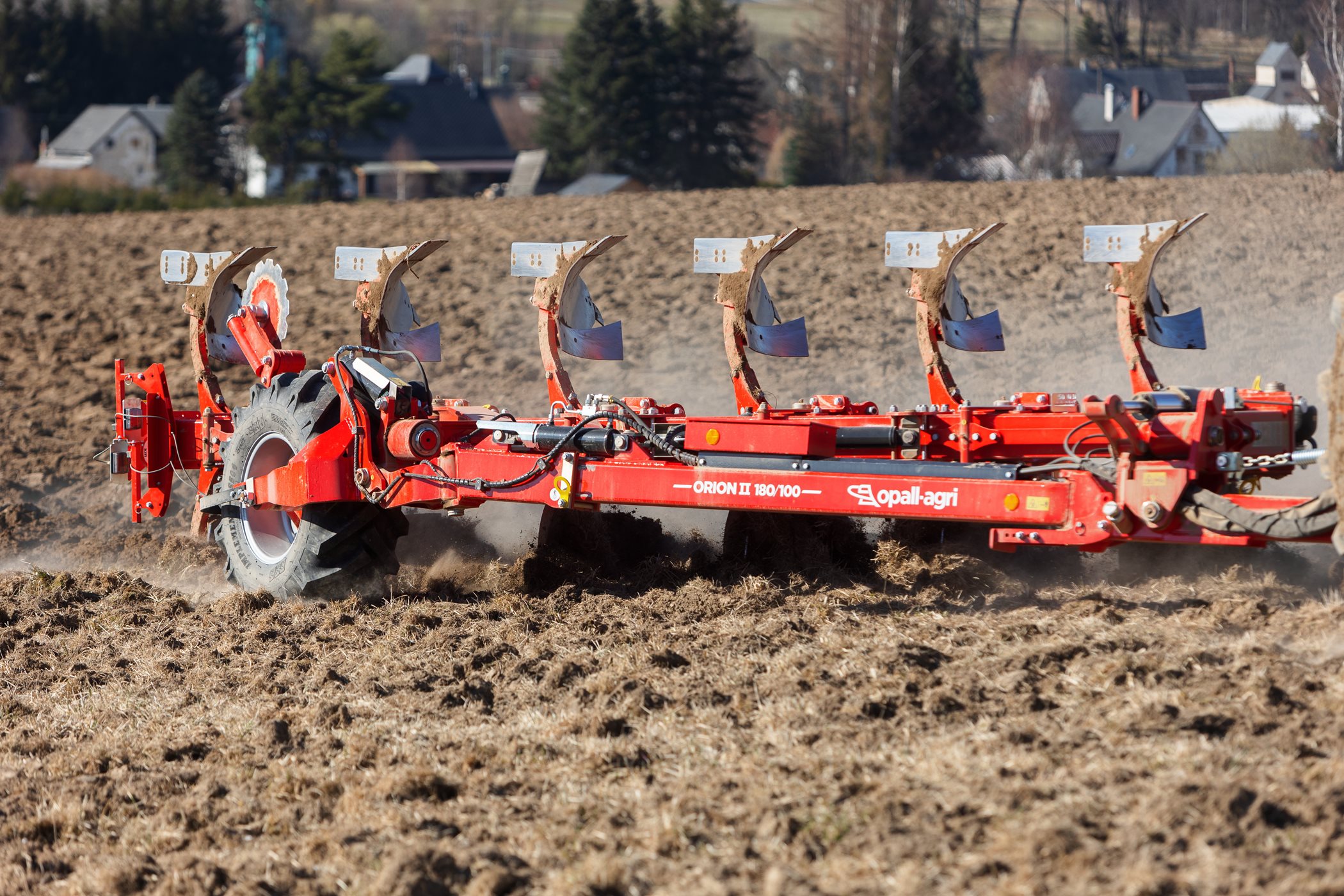

ORION II 180

PLOUGH / SEMI-MOUNTED

ORION I 180 models are six to nine-plough bodied semi-mounted reversible ploughs designed for tractors from 180 hp. The plough rotation system consists of piston rods mounted on a rocker mechanism that rotates the main frame with the plough bodies.
showroom icon

SHOWROOM OPALL-AGRI PART 7 | Semi-mounted ploughs ORION II

 ORION II 180 are six- to nine-row semi-mounted rotary plows designed for tractors from 180 hp. The plow rotation system consists of piston rods mounted on a rocker mechanism, which rotates the main frame with the plow bodies. During construction, emphasis was placed on quality workmanship in combination with the long service life of all components. The main frame of the plow consists of a high-strength profile of 180 x 180 x 10 mm, which gives the plow rigidity and resistance. We also use the most durable materials for the other parts of the plow, which we refine further in production to achieve a high-quality product with high utility value.

Product description

ORION II 180 models are six to nine plough bodied semi-mounted reversible ploughs designed for tractors from 180 hp. The plough rotation system consists of piston rods mounted on a rocker mechanism that rotates the main frame with the plough bodies. During construction emphasis is placed on quality workmanship combined with long service life of all components. The plough frame is constructed from a high-strength 180 x 180 x 10 mm square steel tube giving the plough stiffness and durability. The most durable materials used in the other parts of the plough are further refined in the production conditions in order to achieve a high quality product with high utility value.
  1. Turn of plough with telescopic pistons
  2. Adjusting the engagement of the 1st blade
  3. Hydropneumatically sprung transport wheel
  4. Mechanical adjustment of blade engagement
  5. Cat. 3/4 hitch
ORION II 180
ORION II 180

Main advantage of the machine

The basic frame of the machine is made up of a 6+1 modular system; 7+1 and 8+1. The system thus allows you to assemble the machine according to your current needs. The plow can therefore be extended as well as shortened at any time, which is an advantage, for example, when exchanging tractors with different outputs.



Equipment

Basic equipment

  • Modular system 6+1; 7+1; 8+1;
  • Rotation system with piston rods mounted on a rocker mechanism
  • Hydraulically adjustable width of the 1st plough body
  • Mechanically adjustable width of plough bodies in the range of 33/38/44/50 cm
  • Shear bolt, spring mechanism or hydropneuatic protection
  • Plough bodies with trashboards
  • 82 cm underframe clearance
  • Knife coulters on the last pair of plough bodies
  • Hydraulic chassis suspension for transport
  • Rear reflexive plates
  • Suspension shaft cat. 3
  • Frame profile 180 x 180 x 10 mm

Additional equipment

  • Skimmers
  • Hydraulic circuit divider
Variation – Skimmers
Variation – Hydraulic circuit divider

Technical parameters


Technical specifications   ORION II 180
Number of plough shares [pcs] 6 7 / 6+1 8 / 7+1 9 / 8+1
Working width of one ploughshare [cm] 33/38/44/50 33/38/44/50 33/38/44/50 33/38/44/50
Total working width of the ploughu [cm] 200/230/265/300 230/265/305/350 265/305/350/400 300/340/395/450
Clearance under the frame [cm] 82 82 82 82
Spacing between the plough units [cm] 100 100 100 100
Recommended operating speed [km/h] 7 7 7 7
Plough weight **
- shear [kg] 3080 3360 3680 4010
- spring [kg] 3490 3840 4240 4640
Tractor output [hp] 180 - 250 210 - 300 240 - 350 270 - 400

* Only for variants with shear hub protection of the ploughshares
** The weight is only indicative and may vary according to the selected machine
